AC400 for r134a

Name: AC400 for r134a
SKU: BDE-019-400
Price: 4495.00 USD
Availability: InStock

$4,495.00

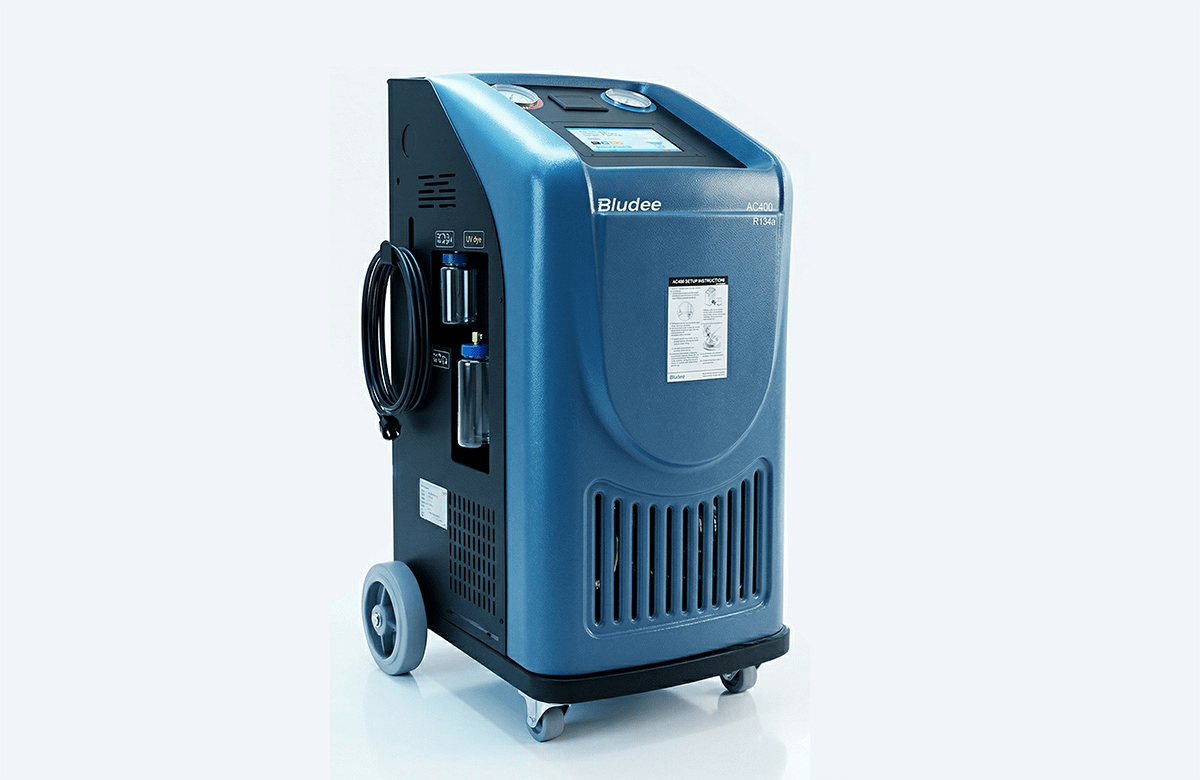

AC400 auto recovery recycle recharge machine for r134A Refrigerant

SKU: BDE-019-400

Category: AC

Description

The model AC400 features a 95% recovery efficiency for both standard and hybrid vehicles, offering fully automatic or manual mode functions.

The AC400 machine is capable of recovering, recycling, evacuating, leak-testing, and recharging R-134a refrigerant. It includes automatic refrigerant refill and oil drain/injection, ensuring that A/C lubricant is properly reintroduced into the system. Additionally, the AC400 comes with a built-in thermal printer and a capacity database for all passenger vehicles

Additional information

Weight	250 lbs
Dimensions	28 × 26 × 47 in
Weight and dimension	Packaged: 28.3 × 26.4 × 46.9 inches (720 × 670 × 1190 mm) Unpacked: 24.8 × 22 × 42.3 inches (630 × 560 × 1075 mm)

Specifications

Dimensions:
- Packaged: 28.3 × 26.4 × 46.9 inches (720 × 670 × 1190 mm)
- Unpacked: 24.8 × 22 × 42.3 inches (630 × 560 × 1075 mm)
Input Power:
- AC110V ±10%, 60 Hz
Operating Conditions:
- Operating Temperature: 32–104°F (0–40°C)
- Humidity: <80% non-condensing
- Storage Temperature: -4–140°F (-20–60°C)
Compressor Power: 3/8 HP
Average Gas-State Refrigerant Recovery Speed: 0.55 lb/min (0.25 kg/min)
Recovery Rate: 95%
Pressurization: Speeds up old oil discharge
Vacuum Pump Capacity: 2.12 cfm (60 L/min); optional 4.24 cfm (120 L/min)
Filter-Drier Capacity: 20.3 fl oz (600 ml) for 220 lb (100 kg) of refrigerant
Accuracy of Gas Cylinder Load Cell: ±0.35 oz (±10 g)
Accuracy of Oil Bottle Load Cell: ±0.18 oz (±5 g)
Gas Cylinder Capacity: 22 lb (10 kg) for R-134a
New Oil Bottle Capacity: 8.45 fl oz (250 ml)
Used Oil Bottle Capacity: 13.5 fl oz (400 ml)
Cooling System: Condenser and cooling fan included
Max. Pressure: 290 psi (20 bar)
Charge Speed: 4.4 lb/min (2 kg/min, max.)
Display: 7-inch full-color touch screen
Pressure Gauges:
- High Pressure: -14.5 to 580 psi (-1 to 40 bar)
- Low Pressure: -14.5 to 319 psi (-1 to 22 bar)
Thermal Printer: Included
Heater Band: Included
Warranty: One year labor warranty, two years part and three years compressor

Features

Automatic recovery/recycling/recharge: Allows you to walk away and return when the process is complete.
Automatic discharging of used oil/oil drain: Efficiently handles the discharge process.
Automatic vacuum: Quickly achieves the necessary vacuum level in any condition.
Automatic new oil injection: Displays the amount of oil removed from the system during service.
Automatic internal tank refill: No need to stop to fill the internal tank during service.
Automatic air purge: Prevents air accumulation in the internal tank.
Comprehensive A/C capacity database: Provides extensive coverage for various A/C systems.
Support Auto Mode: Enables one-step automatic recovery, recycling, vacuum, and recharge.
Tank filling: Offers manual or pre-set value options.
Onboard electronic scales: Ensures precise measurements.
Built-in thermal printer: For easy documentation.
Tank installed internally: Secure and efficient design.
Vacuum leak test: Identifies gross leaks in the system.

Functions

Main functions
1. Recovering/Recycling
2. Discharging used oil
3. Vacuum
4. Refilling new oil
5. Recharging
6. Full Automatic mode
7. Vacuum leak test (optional)
Auxiliary functions
1. Vacuum system piping
2. Multiple alarms
3. Maintenance procedures
4. Part inspections
5. Calibration of load cell
6. Parameters setting
7. Gas cylinder heating
8. Incompressible gases discharging
