Premium AC800 for r134a

Name: Premium AC800 for r134a
SKU: BDE-020-800
Price: 4995.00 USD
Availability: InStock

$4,995.00

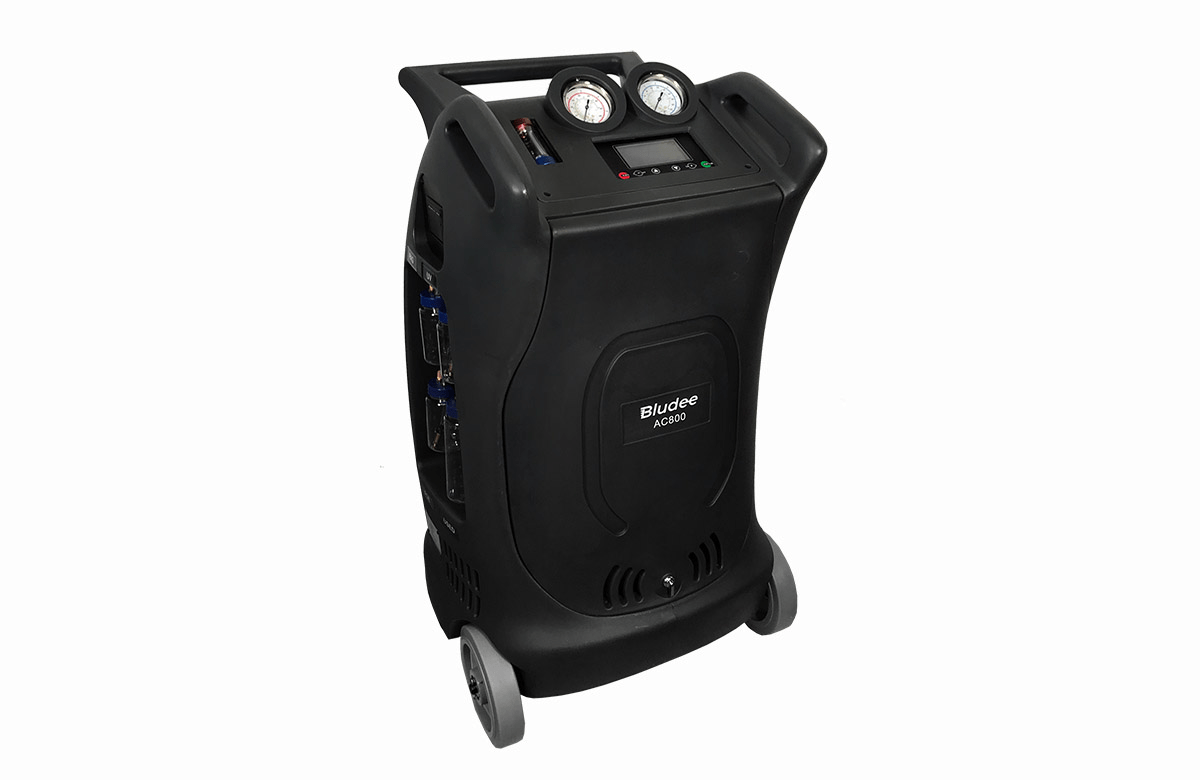

Premium AC recovery recycle recharge machine AC800 for R134A Refrigerant

SKU: BDE-020-800

Category: AC

Description

The model AC800 is featuring an industry leading 99% recovery efficiency for standard and hybrid vehicles and fully automatic function.

The AC800 machine recover, recycle, evacuate, leak-test and recharge R-134a with improved 99% efficiency. It has automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. AC400 also builtin thermal printer and oil capacities database is available for all passenger vehicles.

Additional information

Weight	250 lbs
Dimensions	28 × 26 × 47 in
Weight and dimension	Packaged: 28.3 × 26.4 × 46.9 inches (720 × 670 × 1190 mm) Unpacked: 24.8 × 22 × 42.3 inches (630 × 560 × 1075 mm)

Specifications

Dimension：Package in crate 720*670*1190mm (29”x26”x47”); Unpacked machine 630*560*1075mm(24”x22”x46”)
Input power： AC110V±10％~60Hz
Compressor power：3/8HP
Average gas state refrigerant recovery speed：0.55LBS/min.
Recovery rate: 95%.
Pressurization to speed up old oil discharge.
Vacuum pump capacity：60L(16GAL) /min.
Individualized filter-drier capacity: 600ml
Accuracy of gas cylinder load cell：±10g
Accuracy of oil bottle load cell：±3g
Gas cylinder capacity：10KG (22LBS)
New oil bottle capacity：250ml
Used oil bottle capacity: 400ml
Condenser and cooling fan included.
Max. Pressure：20bar
Charge speed：2Kg/Min(max.)
LCD display：4.3-inch, TFT full color
High pressure gauge range：-1bar~40bar
Low pressure gauge range：-1bar~22bar
A/C database included, update through USB port.
Automatic service reminding. The equipment provides 600 operations totally (each recovery or vacuum counts for one operation, and flush counts for 3 operations) between regular maintenance, when 600 operations have been made the machine automatically reminds to call distributor for maintenance.
Optional: Automatic air purge & thermal printer
Optional: Vacuum leak test
Optional: 120L/Min vacuum pump
Optional: UV dye injection
Optional: POE injection
Optional: Flush
Optional: HFO-1234yf, difference including non-sparkle vacuum pump, 30 seconds pre-ventilation before machine is switched on, HFO-1234yf couplers etc..

Features

Automatic recovery/recycling/recharge, walk away and return when complete
Automatic discharging used oil/oil drain.
Automatic vacuum helps get to the necessary vacuum level in any condition quickly
Automatic new oil injection shows how much oil was removed from the system during service
Automatic internal tank refill. No stopping to fill the internal tank during service
Automatic air purge removes the potential of air accumulating in the internal tank
Comprehensive A/C capacity database
Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge
Tank filling with manual or pre-set value options
Onboard electronic scales
Built in thermal printer
Tank installed internally
Vacuum leak test to identify gross leaks in a system
Flashing feature
Separate POE and PAG oil injection, good for service both electric/hybrid car and regular car

Functions

Main functions	Recovery	Recovers and purifies refrigerant from automotive A/C system and it is then stored in to the machine internal storage cylinder for re-use.
	Evacuation	Removes air, debris and moisture from the vehicle A/C system, with electronic vacuum leak detection test as optional function.
	Oil/dye injection	Electronically injects the preset or selected amount of oil and/or dye into the vehicle A/C system.. UV dye injection is optional.
	Charging	Electronically charges the selected amount of refrigerant in to the vehicle A/C system
	Tank fill	Transfers liquid refrigerant from an external cylinder to the machine internal storage cylinder.
	Flushing （optional）	With this unique flushing system, the machine will extract all compressor oil from the automotive A/C system. Since A/C additives (such as UV dye, leak stopper and cooling booster) and contaminants (moisture, metal and rubber particles etc.) are mainly mixed or dissolved in compressor oil, the flush is very important not only for A/C routine maintenance, but also necessary when an A/C part is replaced.
	Fully automatic function selection	The machine will perform all the selected functions in a fully automatic sequence. The machine will stop automatically once all the selected functions or functions have been completed.
System. settings	Language	Selecting language.
	Calibration	Calibrate refrigerant cylinder load cell, oil vessels load cells, pressure transducer and temperature sensor.
	Vehicle database	The machine stores a large number of vehicle makes and models, with manufacturers’ recommended refrigerant and oil charge quantities.
	Unit settings	Selecting metric or imperial units of measurement. All sensor values displayed in this interface for equipment diagnosis purpose.
	Tare weight setting	Set empty refrigerant cylinder or refrigeration oil zero (tare) weight.
